LAP JOINT STUB ENDS - ANSI : SP-LP (SHORT PATTEM - LONG PATTEM ) SUS304,SUS316 SCH 10S - 40S TYPE A |
|
Product Category: |
|
เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
|
Product Sub-Category: |
|
Fitting:Hexagon Nipple,Union,Reducing Nipple,Lap Joint for Flanges
|
Brand: |
|
AUTOFLEX |
Product Type : |
|
สินค้า, ผลิตภัณฑ์
|
Short Description : |
|
LAP JOINT STUB ENDS - ANSI :SP-LP (SHORT PATTEM - LONG PATTEM ) SUS304 SCH 10S - 40S TYPE A
Lap Joint? Stub End Stainless Steel Pipe Fitting JIS B2312 / ANSI B16.9
Lap Joint Flange
With high tensile strength, these steel lap joint flanges are available with a raised face and back ups for easy
installation. Resistant to corrosion, these joint flanges have high tensile strength and weld ability. Use of
superior quality alloy for raw material makes our range extremely durable. Available in standard dimensions,
these lap joint flanges can also be customized as per client's requirement.
PN1.0--------58.0
American Series: CLASS 150, CLASS 300, CLASS 400, CLASS 600, CLASS 900, CLASS 1500, CLASS 2500
European Series: PN 2.5, PN 6, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100, PN 160, PN 250, PN 320, PN 400?
Flange Facing Types
Flat Face (FF), Raised face (RF), groove (G), female(F), ring joints face(RJ)
Applications:?
We,this?type?pipe?fittings?be?widely?used?in?kinds?of?industries:
Paper?Making,Waste-water?Treatment
Chemical?Industry?and?Natural?Gas
Shipbuilding
Electrical?equipment
Nuclear?Energy
Construction
Petroleum |
|
|
|
|
LAP JOINT STUB ENDS - ANSI : SP-LP (SHORT PATTEM - LONG PATTEM ) SUS304 SCH 10S - 40S TYPE A

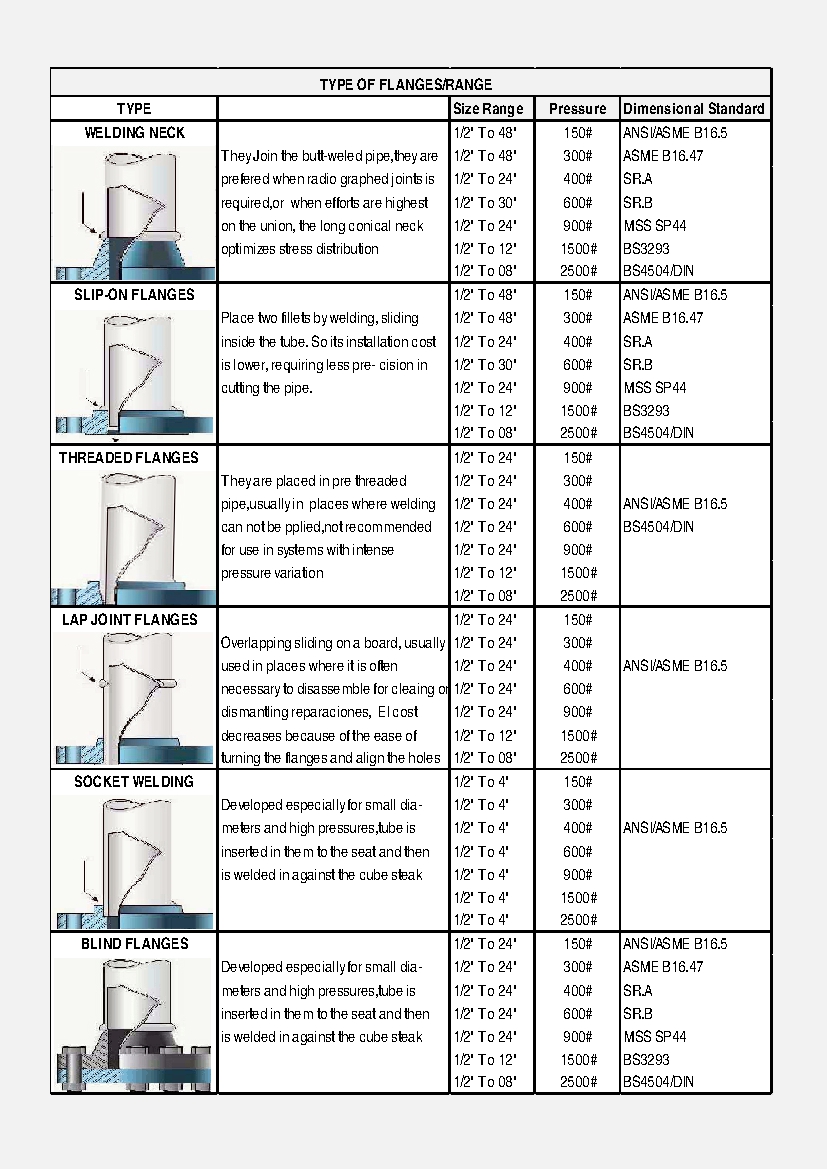

Loose Flange(Lap Joint Flange)
Lap Joint Flanges(Loose Flanges) are used with a corresponding stub-end that "inserts" in the inside of the flange. The main benefit of this type of flange, is that once the pipe welds to the insert stub-end, the flange then can rotate for easier alignment of the bolting holes. However, lap joint flanges and their stub-ends' ability to hold pressure is about the same as slip-on flanges. They are not suitable for situations with a high external or changing loads of force. They do provide an advantage in a piping system that needs frequent dismantling for inspection or to remove build-ups.
Size: Lap Joint Flange(Loose Flange):3/8"-80"
DN10-DN2000
Pressure:
America Series:Class 150 ,Class 300, Class 600, Class 900A ,Class 1500,Class 2500.
Europe Series: PN2.5,PN6,PN10,PN16,PN25,PN40,PN63,PN100,PN160,PN250,PN320,PN400.
Flange Facing Types
America Series: Flat face(FF),Raised face(RF),Tongue(T),Groove(G),Female(F),Male(M),Ring type joints face(RJ/RTJ)
Europe Series: Type A(Flat Face),Type B(Raised Face),Type C(Tongue),Type D(Groove),Type E(Spigot),Type F(Recess),Type G(O-Ring Spigot),Type H(O-Ring Groove)
Material:
Carbon steel: ASTM A105,ASTM A105N,GB 20,C22.8.
Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6
High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70
Standards:
ASME ANSI B16.5,ASME ANSI B16.47.
API 605,API 6L.
MSS SP 44
CSA Z245.12
EN1092-1,EN1759-1.
DIN2642,DIN2655,DIN2656.
BS1560,BS 4504,BS 10.
AFNOR NF E29-200-1
ISO7005-1
AS2129
JIS B2220
UNI 2276. UNI 2277.UNI 2278 .UNI 6089 .UNI 6090

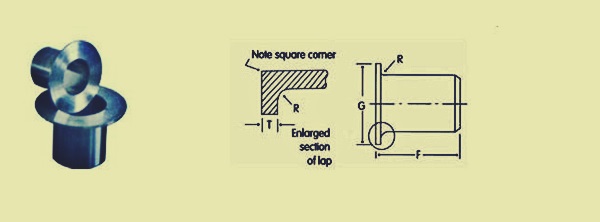

Nominal Diameter |
Outside Diameter |
Lap Joint Stub End F Length |
Diameter of Lap Nominal&Maximum |
Lap Joint Stub End R |
DN |
NPS |
OD |
LP |
SP |
G |
A Max |
Bmax |
15 |
1/2" |
21.3 |
76 |
51 |
35 |
3 |
0.75 |
20 |
3/4" |
26.7 |
76 |
51 |
43 |
3 |
0.75 |
25 |
1" |
33.4 |
102 |
51 |
51 |
3 |
0.75 |
32 |
1 1/4" |
42.4 |
102 |
51 |
64 |
5 |
0.75 |
40 |
1 1/2" |
48.3 |
102 |
51 |
73 |
6 |
0.75 |
50 |
2" |
60.3 |
152 |
64 |
92 |
8 |
0.75 |
65 |
2 1/2" |
73 |
152 |
64 |
105 |
8 |
0.75 |
80 |
3" |
88.9 |
152 |
64 |
127 |
10 |
0.75 |
90 |
3 1/2" |
101.6 |
152 |
76 |
140 |
10 |
0.75 |
100 |
4" |
114.3 |
152 |
76 |
157 |
11 |
0.75 |
125 |
5" |
141.3 |
203 |
76 |
186 |
11 |
1.5 |
150 |
6" |
168.3 |
203 |
89 |
216 |
13 |
1.5 |
200 |
8" |
219.1 |
203 |
102 |
270 |
13 |
1.5 |
250 |
10" |
273.1 |
254 |
127 |
324 |
13 |
1.5 |
300 |
12" |
323.9 |
254 |
152 |
381 |
13 |
1.5 |
350 |
14" |
355.6 |
305 |
152 |
413 |
13 |
1.5 |
400 |
16" |
406.4 |
305 |
152 |
470 |
13 |
1.5 |
450 |
18" |
457.2 |
305 |
152 |
533 |
13 |
1.5 |
500 |
20' |
508 |
305 |
152 |
584 |
13 |
1.5 |
550 |
22" |
559 |
305 |
152 |
641 |
13 |
1.5 |
600 |
24" |
610 |
305 |
152 |
692 |
13 |
1.5 |
Lap Joint Stub End Stainless Steel Pipe Fitting JIS B2312 / ANSI B16.9 |
|
|
|
|
|
Lap Joint Flange |
|
|
|
|
|
|
|
|
|
|
With high tensile strength, these steel lap joint flanges are available with a raised face and back ups for easy |
|
installation. Resistant to corrosion, these joint flanges have high tensile strength and weld ability. Use of |
|
|
superior quality alloy for raw material makes our range extremely durable. Available in standard dimensions, |
|
these lap joint flanges can also be customized as per client's requirement. |
|
|
|
|
PN1.0--------58.0 |
|
|
|
|
|
|
|
|
|
|
American Series: CLASS 150, CLASS 300, CLASS 400, CLASS 600, CLASS 900, CLASS 1500, CLASS 2500 |
|
European Series: PN 2.5, PN 6, PN 10, PN 16, PN 25, PN 40, PN 63, PN 100, PN 160, PN 250, PN 320, PN 400 |
Flange Facing Types |
|
|
|
|
|
|
|
|
|
|
Flat Face (FF), Raised face (RF), groove (G), female(F), ring joints face(RJ) |
|
|
|
Applications: |
|
|
|
|
|
|
|
|
|
|
|
We,this type pipe fittings be widely used in kinds of industries: |
|
|
|
|
|
Paper Making,Waste-water Treatment |
|
|
|
|
|
|
|
|
Chemical Industry and Natural Gas |
|
|
|
|
|
|
|
|
Shipbuilding |
|
|
|
|
|
|
|
|
|
|
Electrical equipment |
|
|
|
|
|
|
|
|
|
Nuclear Energy |
|
|
|
|
|
|
|
|
|
Construction |
|
|
|
|
|
|
|
|
|
|
Petroleum |
|
|
|
|
|
|
|
|
|
Specification |
|
|
|
|
|
|
|
|
|
Nominal Pipe Size (NPS) |
Outside Diameter at Vevel D |
Center to End |
Approx,Weight(kg) |
|
Run c |
Outlet M |
|
Inch |
mm |
Inch |
mm |
Inch |
mm |
STD |
XS |
XXS |
|
1/2" |
0.84 |
21 |
1 |
25 |
1 |
25 |
0.047 |
0.062 |
- |
|
3/4" |
1.05 |
27 |
1.12 |
29 |
1.12 |
29 |
0.059 |
0.073 |
- |
|
1" |
1.32 |
33 |
1.5 |
38 |
1.5 |
38 |
0.104 |
0.127 |
- |
|
1 1/4" |
1.66 |
42 |
1.88 |
48 |
1.88 |
48 |
0.141 |
0.177 |
- |
|
1 1/2" |
1.90 |
48 |
2.25 |
57 |
2.25 |
57 |
0.168 |
0.218 |
- |
|
2" |
2.38 |
60 |
2.5 |
64 |
2.5 |
64 |
0.232 |
0.304 |
- |
|
2 1/2" |
2.88 |
73 |
3 |
76 |
3 |
76 |
0.368 |
0.463 |
- |
|
3" |
3.50 |
89 |
3.38 |
86 |
3.38 |
86 |
0.64 |
0.835 |
- |
|
3 1/2" |
4.00 |
102 |
3.75 |
95 |
3.75 |
95 |
0.962 |
1.29 |
- |
|
4" |
4.50 |
114 |
4.12 |
105 |
4.12 |
105 |
1.16 |
1.55 |
- |
|
5" |
5.56 |
141 |
4.88 |
124 |
4.88 |
124 |
1.91 |
2.61 |
- |
|
6" |
6.62 |
168 |
5.62 |
143 |
5.62 |
143 |
2.91 |
4.2 |
- |
|
8" |
8.62 |
219 |
7 |
178 |
7 |
178 |
5.13 |
7.4 |
- |
|
10" |
10.75 |
273 |
8.5 |
216 |
8.5 |
216 |
9.08 |
11.9 |
- |
|
12" |
12.75 |
324 |
10 |
254 |
10 |
254 |
13.4 |
17.3 |
- |
|
14" |
14.00 |
356 |
11 |
279 |
11 |
279 |
16 |
20.8 |
- |
|
16" |
16.00 |
406 |
12 |
305 |
12 |
305 |
20.1 |
26.2 |
- |
|
18" |
18.00 |
457 |
13.5 |
343 |
13.5 |
343 |
25.9 |
33.9 |
- |
|
20" |
20.00 |
508 |
15 |
381 |
15 |
381 |
32.6 |
42.6 |
- |
|
22" |
22.00 |
559 |
16.5 |
419 |
16.5 |
419 |
38.7 |
51.7 |
- |
|
24" |
24.00 |
610 |
17 |
432 |
17 |
432 |
45 |
60.1 |
- |
|
26" |
26.00 |
660 |
19.5 |
495 |
19.5 |
495 |
50.3 |
67.3 |
- |
|
28" |
28.00 |
711 |
20.5 |
521 |
20.5 |
521 |
56 |
74.9 |
- |
|
30" |
30.00 |
762 |
22 |
559 |
22 |
559 |
62 |
82.9 |
- |
|
32" |
32.00 |
812 |
23.5 |
597 |
23.5 |
597 |
68.3 |
91.2 |
- |
|
34" |
34.00 |
864 |
25 |
635 |
25 |
635 |
74.8 |
1000 |
- |
|
36" |
36.00 |
914 |
26.5 |
673 |
26.5 |
673 |
81.7 |
109 |
- |
|
38" |
38.00 |
965 |
28 |
711 |
28 |
711 |
94 |
126 |
- |
|
40" |
40.00 |
1016 |
29.5 |
749 |
29.5 |
749 |
102 |
137 |
- |
|
42" |
42.00 |
1067 |
30 |
762 |
28 |
711 |
110 |
147 |
- |
|
44" |
44.00 |
1118 |
32 |
813 |
30 |
762 |
125 |
167 |
- |
