Թкʵ͡ ҡѾ

ͧѵ ZXP3 Dye-sublimation thermal transfer direct to card Full color or monochrome printing Single- and dual-sided printing 700 cph monochrome single-sided 195 cph single-sided YMCKO 140 cph dual-sided YMCKOK Edge-to-edge printing on standard


Թ :    ͧѵ ZXP3 Dye-sublimation thermal transfer direct to card Full color or monochrome printing Single- and dual-sided printing 700 cph monochrome single-sided 195 cph single-sided YMCKO 140 cph dual-sided YMCKOK Edge-to-edge printing on standard
觫 (Order Code) :    TTN00-09330
(Model) :    ZXP3
(Brand) :    ZEBRA

Ҥһ :  48,000
ҤҾҧʵ͡ :  44,000
ʹԹѴ :  4,000.00
Save :   9.00%
Stock :   15

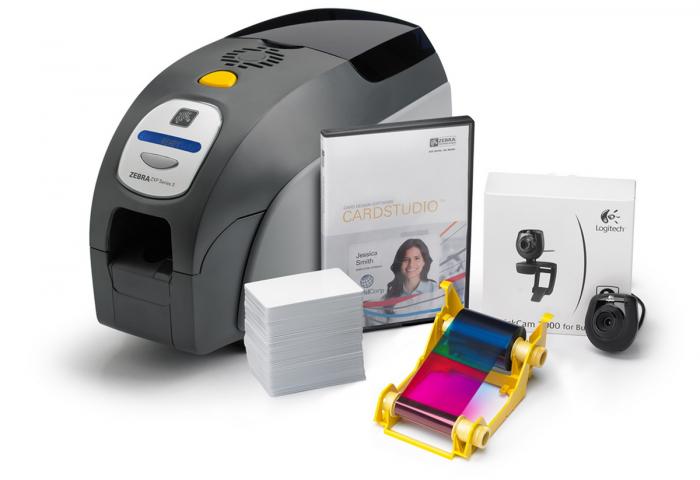

Clearance Product Fullsize
zxps3-standard-th


Benefits

  • The most cost effective printing solution in its class
  • Broad choice of options to meet the needs of a variety of markets and applications
  • Compact design enables the ZXP Series 3 to fit in tight workplaces





Standard Features
  • Auto calibration of ribbon
  • USB connectivity
  • Microsoft Certified Windows drivers
  • Print Touch NFC tag for online printer documentation access
  • 100 card covered feeder (30 mil)
  • 45 card capacity output hopper (30 mil)
  • 16-character LCD operator control display
  • 300 dpi (11.8 dots/mm) print resolution
  • Two-year warranty on printer
  • Two-year (unlimited passes) original printhead
  • One-year hot swap (U.S. only)
  • Kensington® secure lock slot
Printer Specifications
  • Dye-sublimation thermal transfer direct to card
  • Full color or monochrome printing
  • Single- and dual-sided printing
  • 700 cph monochrome single-sided
  • 195 cph single-sided YMCKO
  • 140 cph dual-sided YMCKOK
  • Edge-to-edge printing on standard CR-80 media

Supplies Specifications

NOTE:  The ZXP Series 3 printer is designed to work only with Zebra True Colours ix high-performance ribbons

  • Zebra intelligent technology automatically detects and authenticates ribbon
  • Integrated cleaning roller included with each ribbon.
  • Media Starter Kit (single-sided)– 1 YMCKO ribbon,  200 30-mil PVC cards,
  • Cleaning Kit: 4 print engine cleaning cards and 4 feeder cleaning cards, 1000 images
Operating Characteristics

Operating temperature: 60° F (15° C) to 86° F (30° C)
Storage temperatures: 23° F (-5° C) to 131° F (55° C)
Operating humidity: 20% to 65% non-condensing
Storage humidity: 20% to 70% non-condensing

Media Storage:

  • Temperature: 41° F to 77° F (5° C to 25° C)
  • Humidity: 35% to 65% non-condensing
  • Do not store in direct sunlight


Electrical

  • Auto-switching single-phase AC power
  • Operating range: 90-132VAC and 190-264VAC RMS
  • Frequency range : 47-63 Hz
  • FCC Class A
Physical Characteristics

Width: 7.9" (200 mm)
Height: 9.3" (236 mm)
Depth: 14.5" (368 mm)
Weight: 11.6  lbs (5.3 kg)

Optional Features
  • Built-in 10/100 Ethernet connectivity*
  • Single-card feed mode*
  • ZebraCare™ extended product warranty programs
  • Lockable enclosure with obscure output bin*
Communication Interfaces
  • USB V2.0 (cable included) - standard
  • Built-in 10/100 Ethernet - optional*
Encoding Options and Specifications
  • Magnetic stripe encoder – ISO 7811 (new and re-encoded, tracks 1,2, and 3, high and low coercivity, stripe down, 30 mil card only
  • Smart card contact station ISO 7816 for third-party external contact encoders*
  • Combined MIFARE® ISO 14443 (13.56 MHz) contactless and ISO 7816 Contact Encoder with EMV Level 1 certification and PC/SC compliance (includes 50 card capacity [30 mil] output)*
  • Encoding over USB and Ethernet
Card Compatibility

NOTE:  For optimum print quality and printer performance, use of Zebra genuine supplies is recommended.

  • Card Thickness: 10-40 mil
  • Card Size: CR-80, ISO 7810 format, Type ID-1, 2.12" (54 mm) x 3.38"(86 mm)
  • Card Material: PVC and PVC composite
  • Smart Card Contact – ISO 7816-1,2,3,4
  • Smart Card Contactless MIFARE® ISO 14443A/B
  • Spot Color or monochrome print only on  < 20 mil card thickness
