Product Information :

Product Name:
CCV Characterised control valves
Product Category:   ผลิตภัณฑ์เครื่องทำความร้อน, ความเย็น, อุณหภูมิ
Product Sub-Category:   BELIMO,CCV Control Valves and Actuators(เบลิโม,ระบบชีชีวี,ระบบความร้อน ความเย็น อุณหภูมิ)
Brand:   BELIMO
Product Type :   เครื่องมือ, เครื่องจักรและอุปกรณ์
สินค้า, ผลิตภัณฑ์

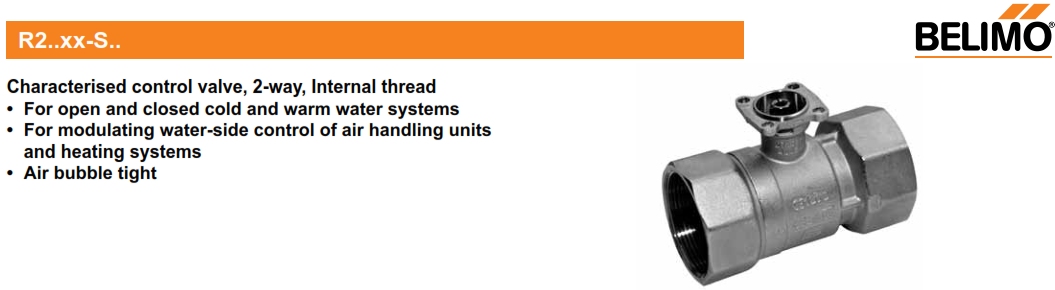

Short Description :   Characterised Control Valves R2..xx-S.. R6..AO, 2-way R3..xx-S.. Open/Close Ball Valves R2..-S.. R6..AO, 2-way R3..-S.. General Rotary Actuators TR.. LR..A.. NR..A.. SR..A.. SR..A(-..)-5 GR..A(-..)-7



Type

kvs

[ m³/h]

DN

[ ]

Rp

[”]

PN

[ ]

n(gl)

[ ]

Sv min.

[ ]

R2015-P25-S1

0.25

15

1/2

40

3.2

50

R2015-P4-S1

0.4

15

1/2

40

3.2

50

R2015-P63-S1

0.63

15

1/2

40

3.2

50

R2015-1-S1

1

15

1/2

40

3.2

50

R2015-1P6-S1

1.6

15

1/2

40

3.2

50

R2015-2P5-S1

2.5

15

1/2

40

3.2

50

R2015-4-S1

4

15

1/2

40

3.2

100

R2015-6P3-S1

6.3

15

1/2

40

3.2

100

R2020-4-S1

4

20

3/4

40

3.2

100

R2020-6P3-S1

6.3

20

3/4

40

3.2

100

R2025-6P3-S2

6.3

25

1

40

3.2

100

R2025-10-S2

10

25

1

40

3.2

100

R2032-10-S2

10

32

1 1/4

25

3.2

100

R2032-16-S2

16

32

1 1/4

25

3.2

100

R2040-16-S2

16

40

1 1/2

25

3.2

100

R2040-25-S2

25

40

1 1/2

25

3.2

100

R2050-25-S3

25

50

2

25

3.2

100

R2050-40-S3

40

50

2

25

3.2

100

Technical data

Functional data

Media

Cold and warm water, water with glycol up to max. 50% vol.



Medium temperature

-10...120°C



Medium temperature note

The allowed media temperature can be limited, depending on the type of actuator. Limitations can be found in the respective data sheets of the actuators.



Closing pressure ?ps

1400kPa



Differential pressure  ?pmax

350kPa



Differential pressure note

200kPa for low-noise operation



Flow characteristic

Equal percentage (VDI/VDE 2178), optimised in the opening range



Leakage rate

Leakage rate A, air-bubble-tight (EN 12266-1)



Pipe connectors

Internal thread according to ISO 7-1



Angle of rotation

90° (Operating range 15...90°)



Installation position

Upright to horizontal (in relation to the stem)



Maintenance

Maintenance-free

Materials

Housing

Brass body nickel-plated



Closing element

Stainless steel



Stem

Stainless steel



Stem seal

O-ring EPDM



Valve seat

PTFE, O-ring EPDM



Characterising disc

TEFZEL

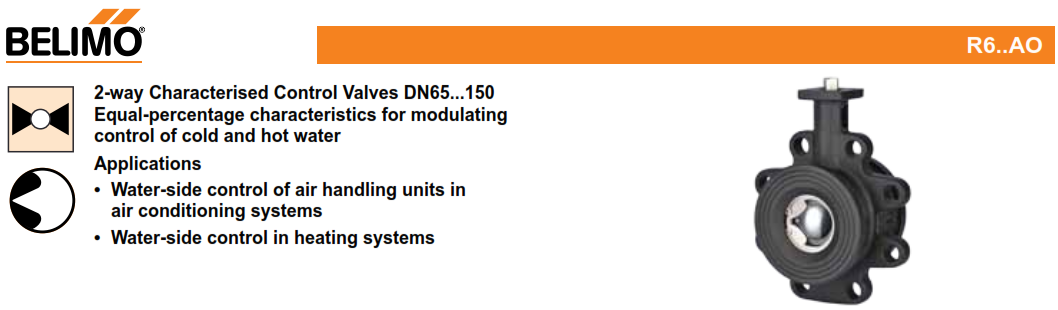

2-way Characterised Control Valves DN65...150

ApplicationsEqual-percentage characteristics for modulating control of cold and hot water

•  Water-side control of air handling units in air conditioning systems

•  Water-side control in heating systems

Technical data R6..AO

Product features



Flow medium



Cold and hot water, water with max. 50% volume of glycol

Temp. of medium



-5...+100°C

Rated pressure



1600kPa

Flow characteristic



Equal percentage

Rangeability



Sv>100

Leakage rate



0...0.01% Kvs (ANSI Class IV) (No leakage when ex-factory)

Pipe connector



Flanged ISO 7005-2

Differential pressure

Pmax

DN65...125        350kPa (200kPa for low-noise operation) DN150               <300kPa

Close-off pressure

Ps

DN65...125         700kPa

DN150                400kPa

Angle of rotation



90°

Installation position



Upright to horizontal (in relation to the stem)

Maintenance



Maintenance-free

Valve Material

Body





GG25, Polyester coated

Ball

Seat



Stainless steel

DN65...125 RPTFE



Shaft



DN150 TFM1600

Stainless steel

O-ring



EPDM

Characterising disc



Stainless steel

Mode of Operation    The Characterised Control Valve is operated by a Rotary Actuator.

The actuator is controlled by a standard modulating or 3-point control system and drives the ball of the valve - the throttling device - to the opening position dictated by the control signal.

Equal-percentage characteristic    Equal-percentage characteristic of the flow rate ensured by the integral characterising disc.

Valve type

DN

Dimensions [mm]

[kg]

Weight

mm



In



ØA



ØD

H



H1

 L

 NØd



R664AO/R665AO

65

212"

105

145

128.0

12.0

93.0

4-18

4.8

R679AO/R680AO

80

3"

125

160

134.5

12.0

108.0

8-18

7.2

R6099AO/R6100AO

100

4"

148

180

144.0

15.5

120.0

8-18

10.5

R6124AO/R6125AO

125

5"

174

210

158.0

15.5

142.0

8-18

14

R6149AO/R6150AO

150

6"

204

240

176.5

15.5

170.0

8-22

21

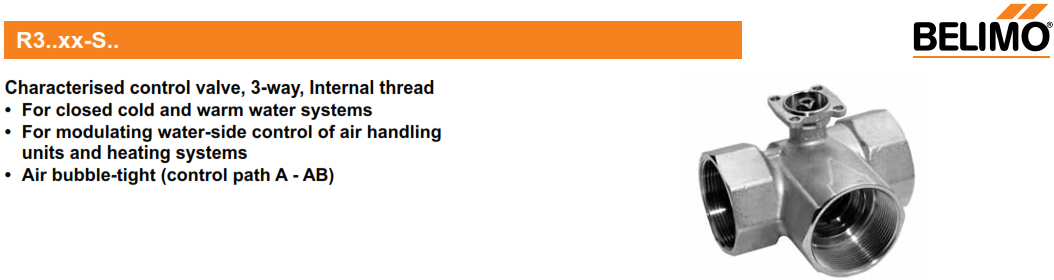

R3..xx-S..

Characterised control valve, 3-way, Internal thread
• For closed cold and warm water systems
• For modulating water-side control of air handling
units and heating systems
• Air bubble-tight (control path A - AB)

Type

kvs

[ m³/h]

DN

[ ]

Rp

[”]

PN

[ ]

n(gl)

[ ]

Sv min.

[ ]

R3015-P25-S1

0.25

15

1/2

40

3.2

50

R3015-P4-S1

0.4

15

1/2

40

3.2

50

R3015-P63-S1

0.63

15

1/2

40

3.2

50

R3015-1-S1

1

15

1/2

40

3.2

50

R3015-1P6-S1

1.6

15

1/2

40

3.2

50

R3015-2P5-S1

2.5

15

1/2

40

3.2

50

R3015-4-S1

4

15

1/2

40

3.2

100

R3020-4-S1

4

20

3/4

40

3.2

100

R3020-6P3-S1

6.3

20

3/4

40

3.2

100

R3025-6P3-S2

6.3

25

1

40

3.2

100

R3025-10-S2

10

25

1

40

3.2

100

R3032-10-S2

10

32

1 1/4

25

3.2

100

R3032-16-S3

16

32

1 1/4

25

3.2

100

R3040-16-S3

16

40

1 1/2

25

3.2

100

R3040-25-S4

25

40

1 1/2

25

3.2

100

R3050-25-S4

25

50

2

25

3.2

100

R3050-40-S4

40

50

2

25

3.2

100

R3050-58-S4

58

50

2

25

3.2

100





















 Technical data

Functional data

Media

Cold and warm water, water with glycol up to max. 50% vol.



Medium temperature

-10...120°C



Medium temperature note

The allowed media temperature can be limited, depending on the type of actuator. Limitations can be found in the respective data sheets of the actuators.



Closing pressure ?ps

1400kPa



Differential pressure  ?pmax

350kPa



Differential pressure note

200kPa for low-noise operation



Flow rate

Bypass B – AB: 70% of kvs value



Flow characteristic

Control path A – AB: equal percentage (VDI/ VDE 2178), optimised in the opening range, Bypass B – AB: linear (VDI/VDE 2178)



Leakage rate

Control path A - AB: Leakage rate A, air-bubble- tight (EN 12266-1), Bypass B - AB: Leakage class I (EN 1349 and EN 60534-4) approx.

1...2% of the kvs value, with respect to the largest value within the DN



Pipe connectors

Internal thread according to ISO 7-1



Angle of rotation

90° (Operating range control path A - AB

15...90°, Bypass B – AB 15...70°)



Installation position

Upright to horizontal (in relation to the stem)



Maintenance

Maintenance-free

Materials

Housing

Brass body nickel-plated



Closing element

Stainless steel



Stem

Stainless steel



Stem seal

O-ring EPDM



Valve seat

PTFE, O-ring EPDM



Characterising disc

TEFZEL

R3040-25-S4, R3050-40-S4, R3050-58-S4: Stainless steel
