Product Information :

Product Name:

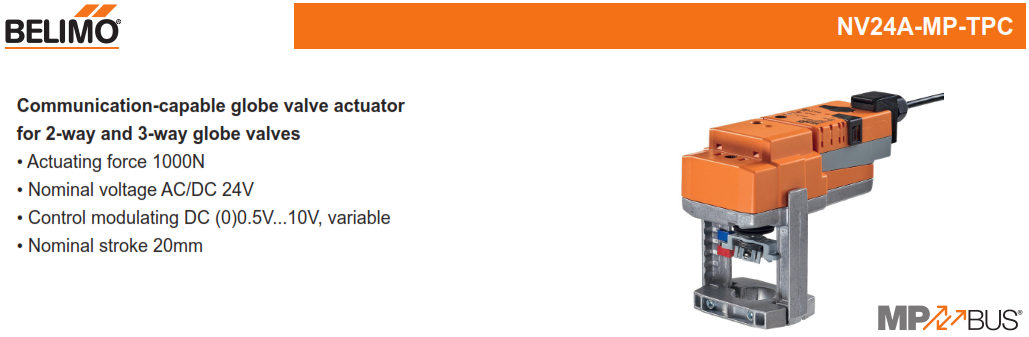

NV24A-MP-TPC Globe valve actuator , 1000N
Product Category:   ผลิตภัณฑ์เครื่องทำความร้อน, ความเย็น, อุณหภูมิ
Product Sub-Category:   BELIMO,Globe Valves and Actuators เครื่องทำอุณหภูมิความร้อน ความเย็น
Brand:   BELIMO
Product Type :   สินค้า, ผลิตภัณฑ์
Short Description :   Globe Valve Actuators, 1000N NV24A-TPC NV230A-TPC NV24A-SZ-TPC NV24A-MP-TPC





1000N

1500N

2500N

4500N

New Generation Globe Valve Actuator

NV..A

SV..A

EV..A

RV..A

Open/Close,   -point, AC/DC 24V,

50/60Hz



NV24A-TPC



SV24A-TPC



EV24A-TPC



AC 2  0V, 50/60Hz

NV2  0A-TPC

SV2  0A-TPC

EV2  0A-TPC



Modulating control signal DC (0)0.5-10V, Feedback DC (0)0.5-10V, 50/60Hz



NV24A-SZ-TPC



SV24A-SZ-TPC



EV24A-SZ-TPC



RV24A-SZ

Multifunction, MP-Bus, 50/60Hz Control signal variable DC (0)0.5-  2V, Feedback signal variable DC (0)0.5-10V



NV24A-MP-TPC



SV24A-MP-TPC



EV24A-MP-TPC



RV24A-MF

Running Time

150s (variable on -MF and -MP)

Stroke

20mm

20mm

40mm

40mm

Sound Power Level

Max. 55dB(A)

Max. 45dB(A)

Max. 55dB(A)

Max. 65dB(A)

Manual Override

Gear disengagement with push-button

Electrical Connection

1m cable, -TPC (Terminal with 1m cable)

Direction of Rotation

Selected by switch

Position Indicator

Mechanical 5..20mm

Mechanical 5..40mm

Degree of Protection

IP54

EMC

CE in accordance with 2004/108/CE

Certification IEC/EN

Certified to IEC/EN 607  0-1, IEC.EN 607  0-2-14

Ambient Temperature

0°C..+50°C

Non-operation temperature

-40°C..+80°C

Ambient Humidity

95% r.h., non-condensing
