Product Information :

Product Name:
SY.. BELIMO Butterfly Valve Actuator
Product Category:   เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Product Sub-Category:   วาล์ว
Brand:   BELIMO
Product Type :   เครื่องมือ, เครื่องจักรและอุปกรณ์
สินค้า, ผลิตภัณฑ์

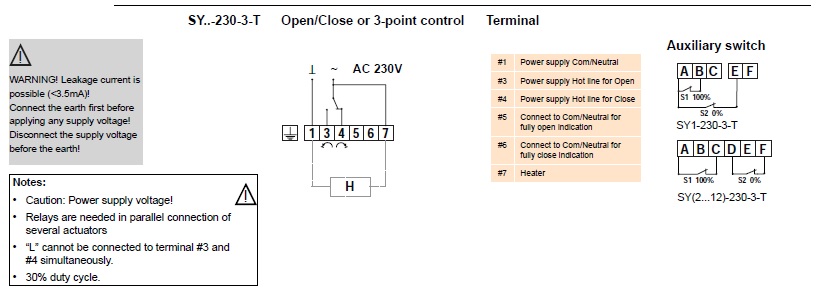

Short Description :   SY.. Large Torque Multi-function Actuators ? General Large Torque Actuators for operation of: DN50...600 Butterfly Valves ? Torque: 35...3500Nm ? Open/Close or 3-point control:SY...24-3-T, SY...230-3-T ? Modulating control: SY1U24-SR-T, SY1U230-SR-T SY...U24-MF-T, SY...U230-MF-T



Model
No.
Nominal Torque Motor power Running time
AC            AC 230V
Running current
AC          AC
Manual override Weight
(kg)
Mounting flange
SY1.. (Nm) 10W 10W 24V 50Hz 60Hz 24V 230V by 8mm Wrench 2 F05
35 15s 13s 12s 0.6A 0.3A
SY2.. 90 70W 40W 15s 17s 15s 3.0A 0.5A Handwheel 11 F07
SY3.. 150 70W 40W 22s 26s 22s 3.0A 0.5A Handwheel 11 F07
SY4.. 400 180W 120W 16s 18s 16s 6.0A 0.6A Handwheel 22 F10
SY5.. 500 180W 120W 22s 25s 22s 6.5A 0.7A Handwheel 22 F10
SY6.. 650 / 120W / 31s 28s / 0.8A Handwheel 22 F10
SY7.. 1000 / 180W / 55s 46s / 1.6A Handwheel 36 F14
SY8.. 1500 / 220W / 55s 46s / 2.0A Handwheel 36 F14
SY9.. 2000 / 180W / 70s 58s / 1.6A Handwheel 56 F16
SY10.. 2500 / 220W / 70s 58s / 2.0A Handwheel 56 F16
SY11.. 3000 / 250W / 70s 58s / 1.6A Handwheel 56 F16
SY12.. 3500 / 300W / 70s 58s / 2.2A Handwheel 56 F16


Technical data

Nominal voltage   AC 24V ± 10%
SY...-3-T, SY...-SR-T  AC 230V ± 10%

Nominal voltage range

 SY...-3-T, SY...-SR-T

AC 21.6...26.4V

207...253V

Connecting cable  ½” cable connector, screw terminals
Motor protection   H class insulation (SY1), F class insulation (SY2...12)
Gear train  High alloy steel gear sets
Control signal Y  DC (0)2...10V
Sensitivity  200mV
Position feedback signal U  DC (0)2...10V
Angle of rotation  Electrically limited to 90°, Max. 95° for manual operation
Position indicator  Top mounted domed indication
Auxiliary switches  2xSPDT 3A, AC 230V(SY1); 2xSPDT 5A, AC 230V(SY2...12)
Ambient temp.  -20...+60°C
Humidity  5...95% RH, non-condensing
Degree of protection  IP67
Housing material  Die Cast Aluminium Alloy
EMC  CE according to 2004/108/EC
Low voltage directive  CE according to 2006/95/EC
