บาร์โค้ด GS M500BT 2D Bluetooth Barcode Scanner 2D Imager Mini BT Barcode ScannerKits (Support image upload?off line data collect?USB-HID or USB-VCP?USB Serial?wired connection and Bluetooth HID or Bluetooth SPP wireless connection, work with IOS, Android

เครื่องสแกนบาร์โค้ด ไร้สาย รองรับการใช้งานร่วมกับ Smartphone ,Phone ,IPad ,Tablet ,Android ,IOS ,Windows ใช้งานง่ายสะดวกสะบาย เครื่องเล็กกระทัดรัด

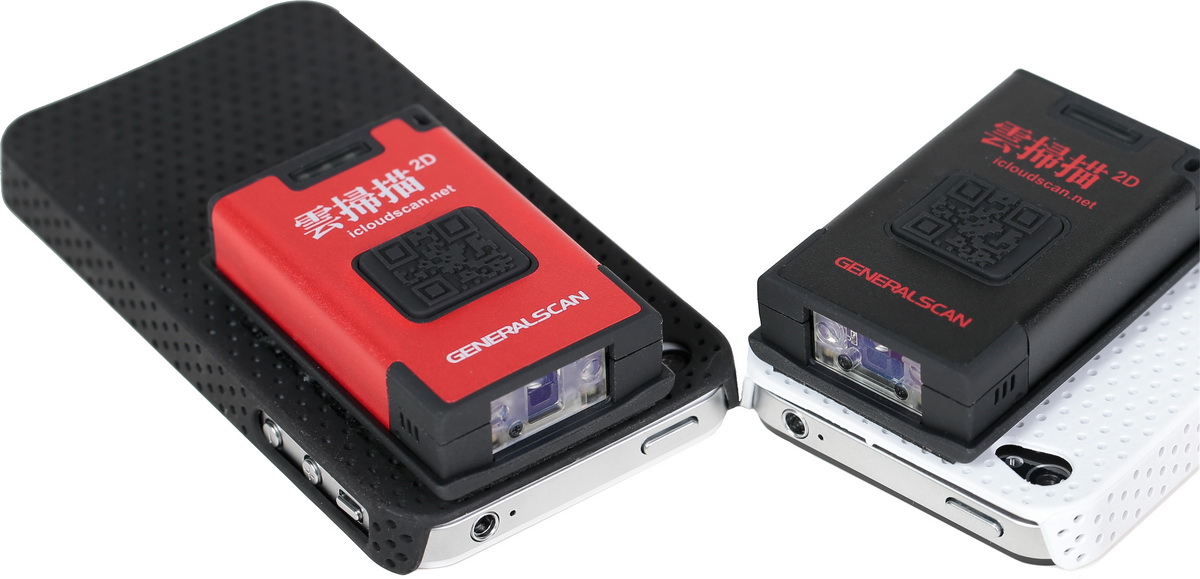

GS M500BT 2D Bluetooth companion scanner is mini size and powerful new generation barcode scanner. It can be combined with smartphone to be a professional data
collection terminal .

It features advanced CMOS imager scan engines which can rapidly decode 1D and 2D barcode into your smartphone via Bluetooth, such as iPhone, iPad, and all kinds of android smartphone.

With GS M500BT Bluetooth companion scanner, you do not need to buy the expensive and heavy PDA anymore! It has dual field optics, both high density and wide field in the same unit.

Build in high volume Li-ion battery, holds up to 8 hours scan with 10 seconds interval trigger. Build-in memory and large off-line storage up to 10000 barcodes

Feature
? Patented Dual Field Optics ,Both High Density and wide field in the same unit
? Low power comsuption bluetooth 3.0 technology ,support HID and SPP protocol
? 8 hours scanning with 10 second interval rigger
? Bulid-in memory and Offline save mode ,can save 10000 pcs barcode in the scanner
? Smartphone screen barcode rediblity ? Ultrafast hardware decode ablility

Dimension:L59.9mm×W37.6mm×H13.9mm
Weight? 50g
Sensor Type: CMOS 120 Mega Pixels(1280X960)
Scan Speed: 30 times/s
Scan Angle: ±60°?±60°?±180°
?Pitch,Skew,Rotation?

Working Temp?-10° C-60° C?-4° F-140° F?
Humidity? 5%-90%?No Condensing?

Ambient Light? Max 96800 Lux

DOF %Resolution?
3 mil Code39 : 80mm- 102 mm
7.5 mil Code39 : 33mm-182 mm
10 mil GS1Databar : 20mm-220 mm
5 mil DM : 43mm-115 mm
10 mil DM : 20mm-180 mm
20 mil DM : 28mm-343 mm

Barcode Contrast? >25%(1D),>35%(2D)
Communication?USB2.0,Bluetooth 3.0
Battery Volume?750mAh
Standby?3 day
Working Time?14 hours with 10 second trigger interval
Certification?CE?ROHS ?WEEE compatiable

Input Voltage: DC5 V±0.15V
Scan Current: 40 ma?working?/220 ma?max?
Standby Current: < 5ma

Symbologies?
1D: Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, IATA 2 of 5, Interleaved 2 of 5, GS1
DataBar (RSS), Hong Kong 2 of 5, Matrix 2 of 5, MSI Plessey, NEC 2 of 5, Pharmacode, Plessey, Straight 2 f 5, Telepen, Trioptic, UPC/EAN/JAN

Stacked 1D: Codablock F, MicroPDF, PDF417, GS1 Composite (CC-A/CC-B/CC-C)

2D: Aztec Code, Data Matrix, Han Xin, MaxiCode,Micro QR, QR Code

Proprietary 2D: GoCode (Additional License Required)

Postal Codes: Australian Post, Intelligent Mail, Japan Post, KIX Code, Korea Post, Planet, Postnet, UK Royal Mail, UPU ID-tags

Optional Accessory?
USB Cable?use for communication and
power charge
H a n d h o l d a d pa t e r ? G S D 1 0 0 BT U S B
Bluetooth Dongle?strap

Warranty?Scanner 1 year?Battery :0.5 year
Ceritfication: CE?ROHS
